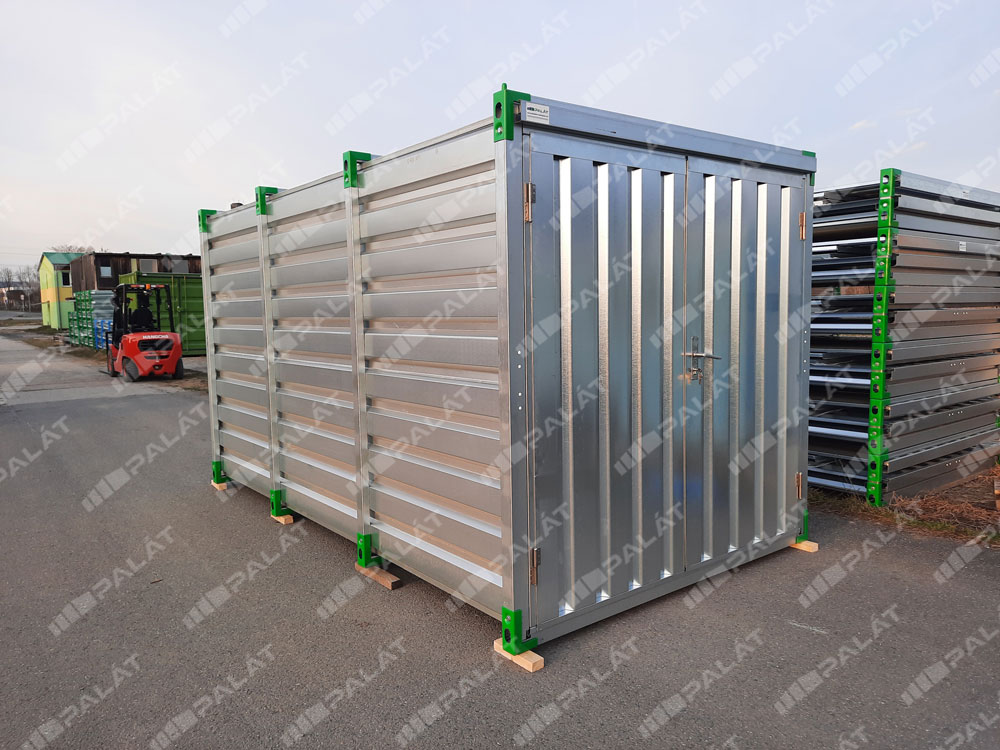

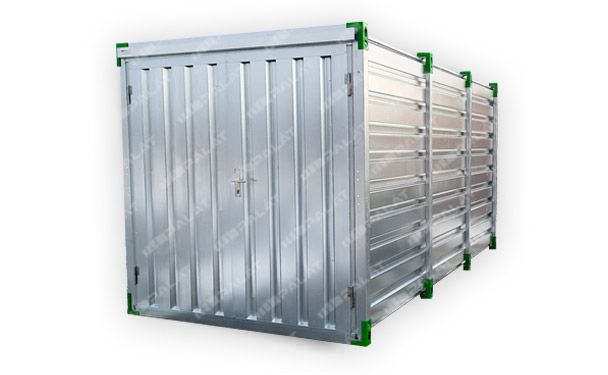

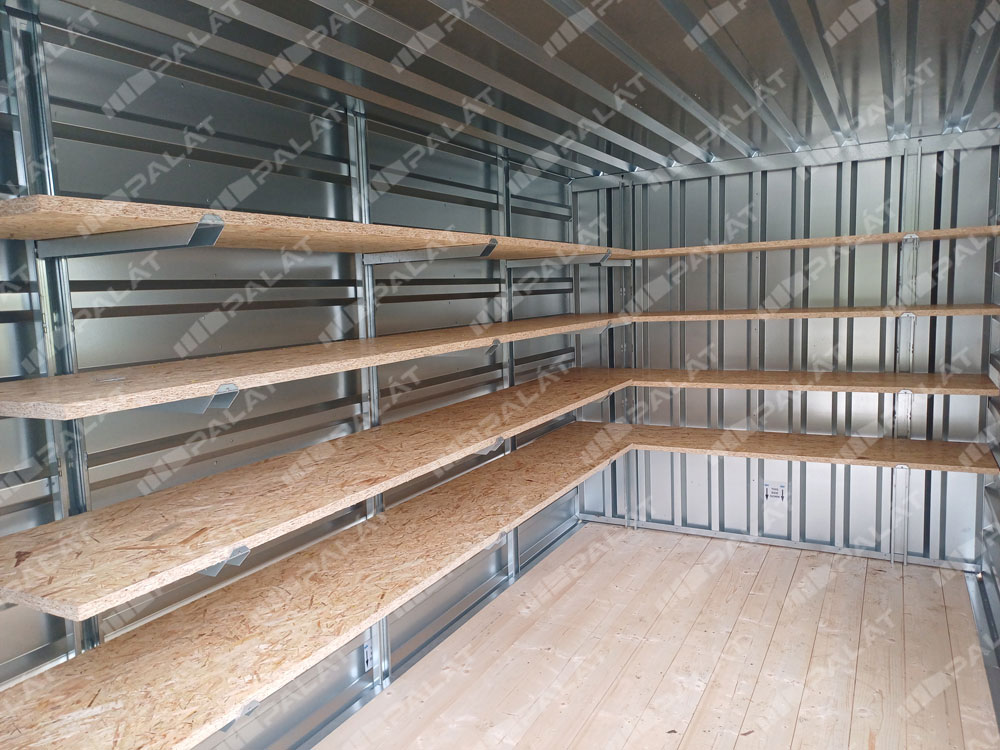

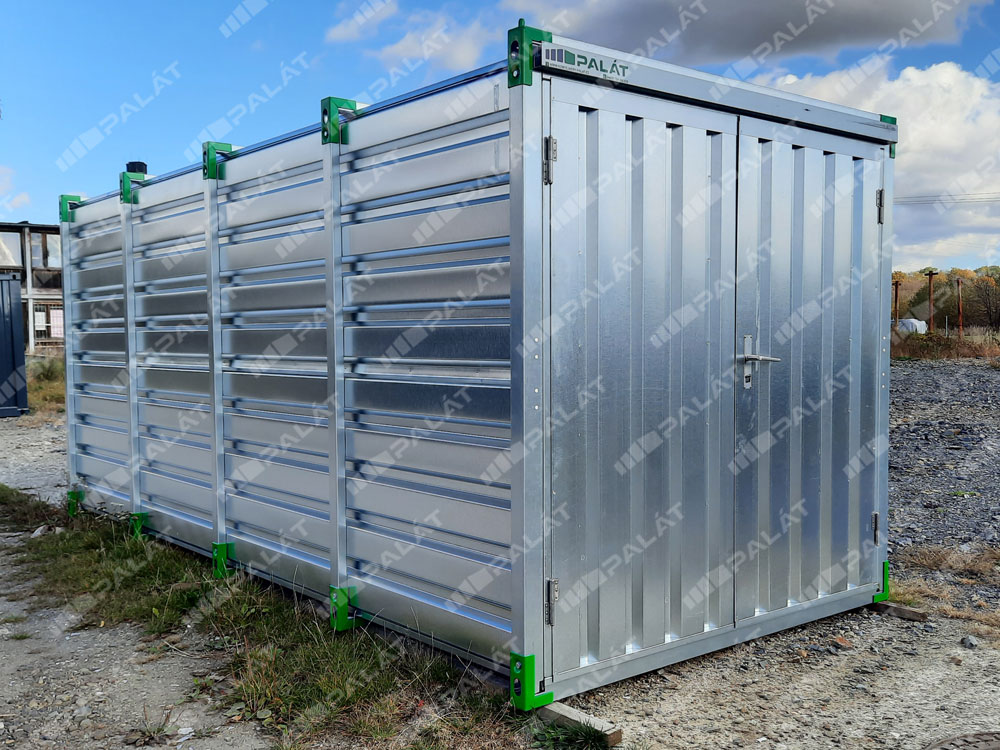

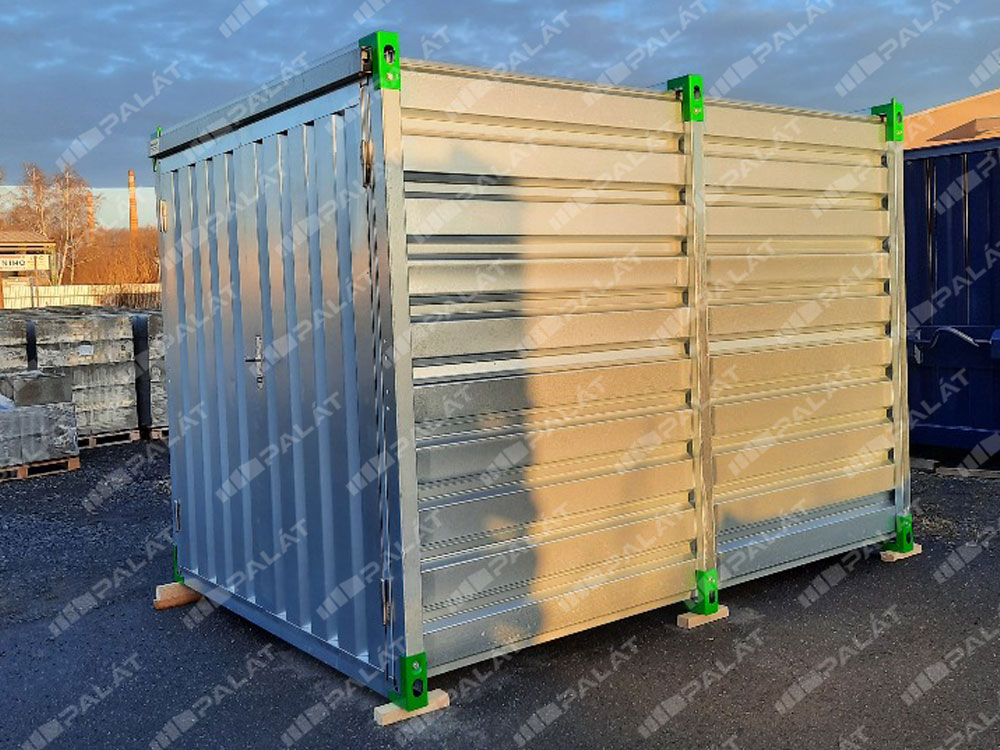

Mobile storage containers are mainly used for storing tools and materials by construction companies. The storage containers are produced in several variants. The construction of the storage containers can be solved as a standard version with a double leaf door in front, wooden floor and no windows or as a version with windows, shelves and an alternative solution for access or others.
The storage containers are manufactured in five lengths.
The great advantage of a mobile storage container is its option of a repeated assembly and dismantling, which enables to reduce the costs of transport and provide a possibility of the storage during the construction off-season.
a container is produced from the trapezoidal galvanized sheet of the thickness 0.75 mm
supporting profiles are made of galvanized sheet of the thickness 2 mm
a container is equipped with a single leaf or double leaf door with a handle and a lock in the front or side wall
an entrance profile, when the door is open, is 1,92 x 1.95m
a wooden floor of the thickness 35 mm (tongue and groove system)
dimensions of the storage containers – height 2,2m, width 2,18m, length 2,25m, 3m, 4m, 5m or 6m
a storage container can be easily assembled and dismantled (advantage for storing and transport)
Length: | Weight: |
2,25 m | 360 kg |
3 m | 420 kg |
4 m | 510 kg |
5 m | 600 kg |
6 m | 690 kg |
Weight of a container is valid for the basic variant – with a double leaf door in front and wooden floor.
handling with a crane | 1 500 kg |
handling with a forklift | 3 000 kg |
bottom loading of surface | 500 kg/m2 |
double leaf door in front or from the side
single leaf door from the side
combination of multiple doors (e.g. in front or from the side)
The container may also be equipped with fork lines for handling with a forklift – it is used when the forklift is not equipped with sufficiently long forks to avoid damage of the bottom of the storage container.
Before handling with a forklift, the centre of gravity of the container must be determined as the condition for safe handling.
